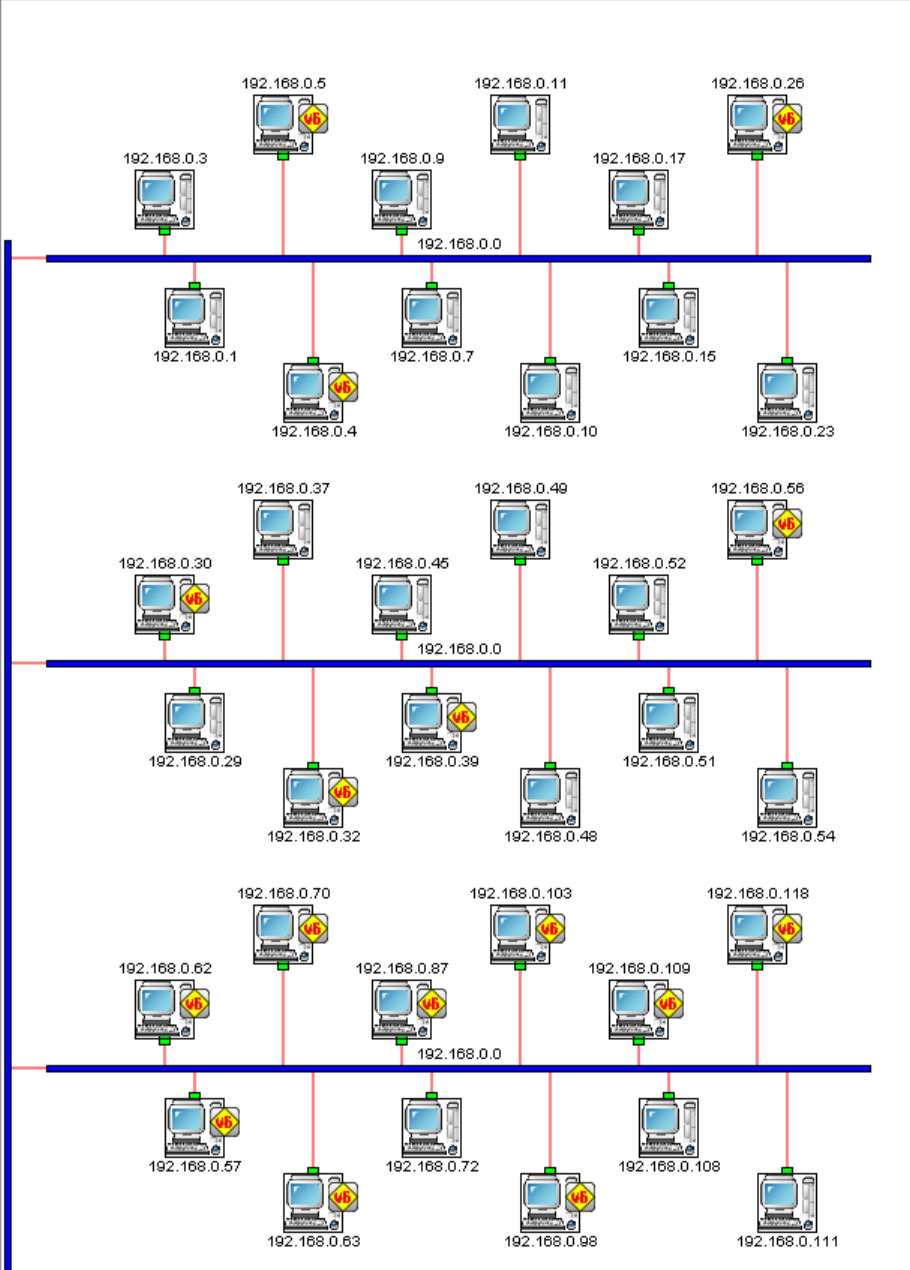

As for the detailed network map, please tell me the order in which device icons are placed.

Device icons are placed according to the following rules. However, if the network map has been edited and saved, the layout of the edited network map takes priority.

* Device icons are placed above and below the network line.
* The maximum number of device icons per network line is 12.
* If the number of device icons exceeds 12, additional icons are placed on the next network line.
* Network lines are placed from top to bottom.
* In the default settings of the NetSkateKoban Console, device icons are placed in order of IP address.
