NetSkateKoban Nano
Easy installation, instant operation, and the definitive solution for preventing unauthorized connections!

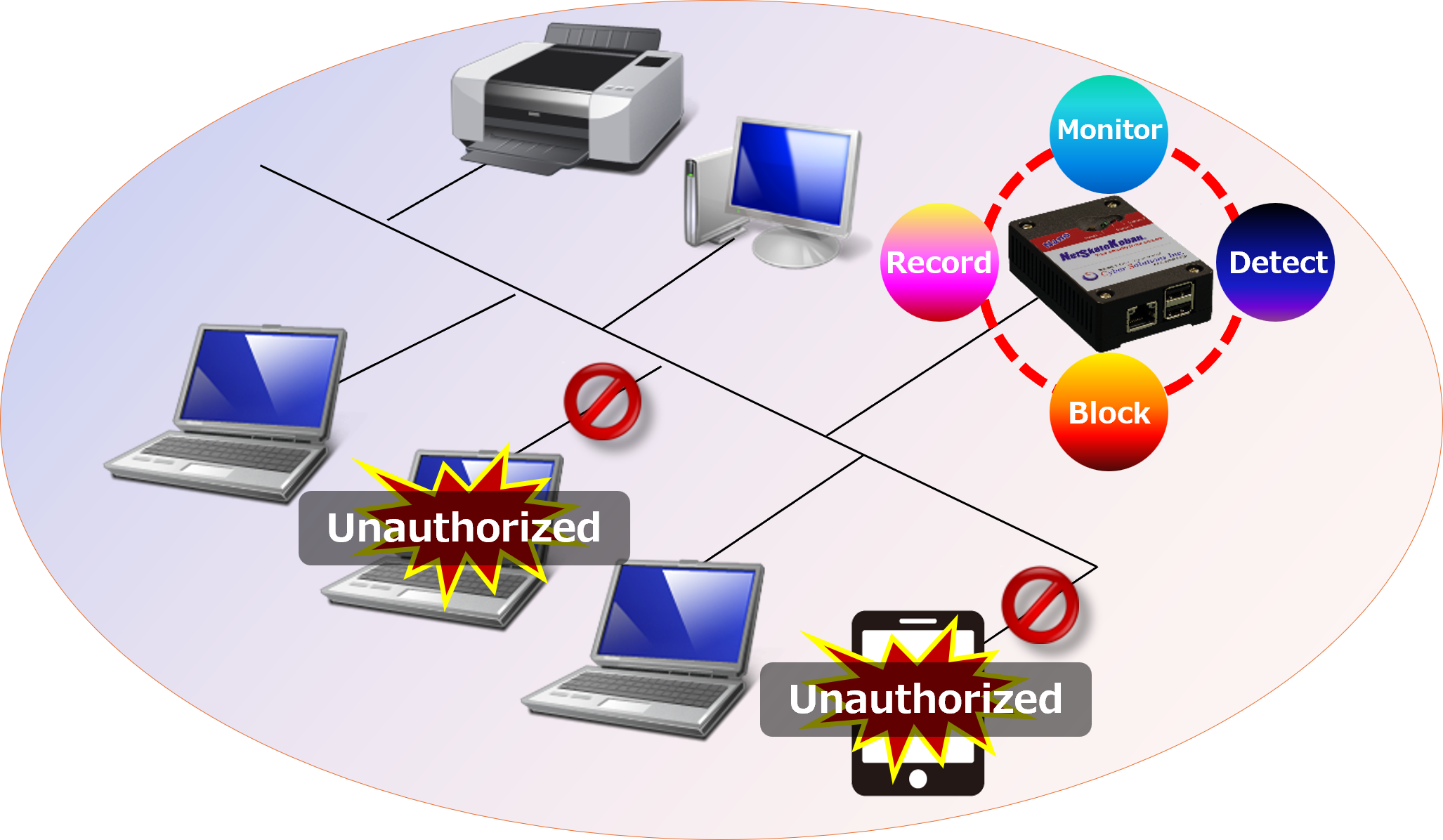

NetSkateKoban Nano is a product that responds to the need to “build security functions (detection and connection blocking of unauthorised terminals) to protect information systems from the threat of unauthorised terminals without any hassle”.
NetSkateKoban's powerful security features are retained, but can be easily implemented without the need for specialist knowledge.
Flexible support for small networks to large networks spanning multiple locations.
Note: The product that supports networks configured with VLAN (Virtual LAN) is NetSkateKoban Nano(V).
Features
Compact!
No management server, terminal agent, or terminal license required
Easy installation by simply connecting to a LAN port

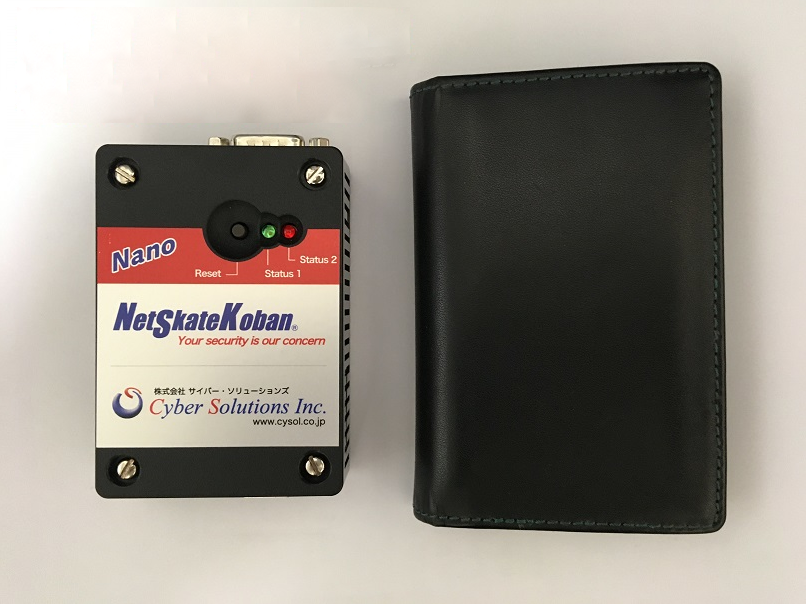

Smaller than a name card holder!!
Doesn't take up space!!

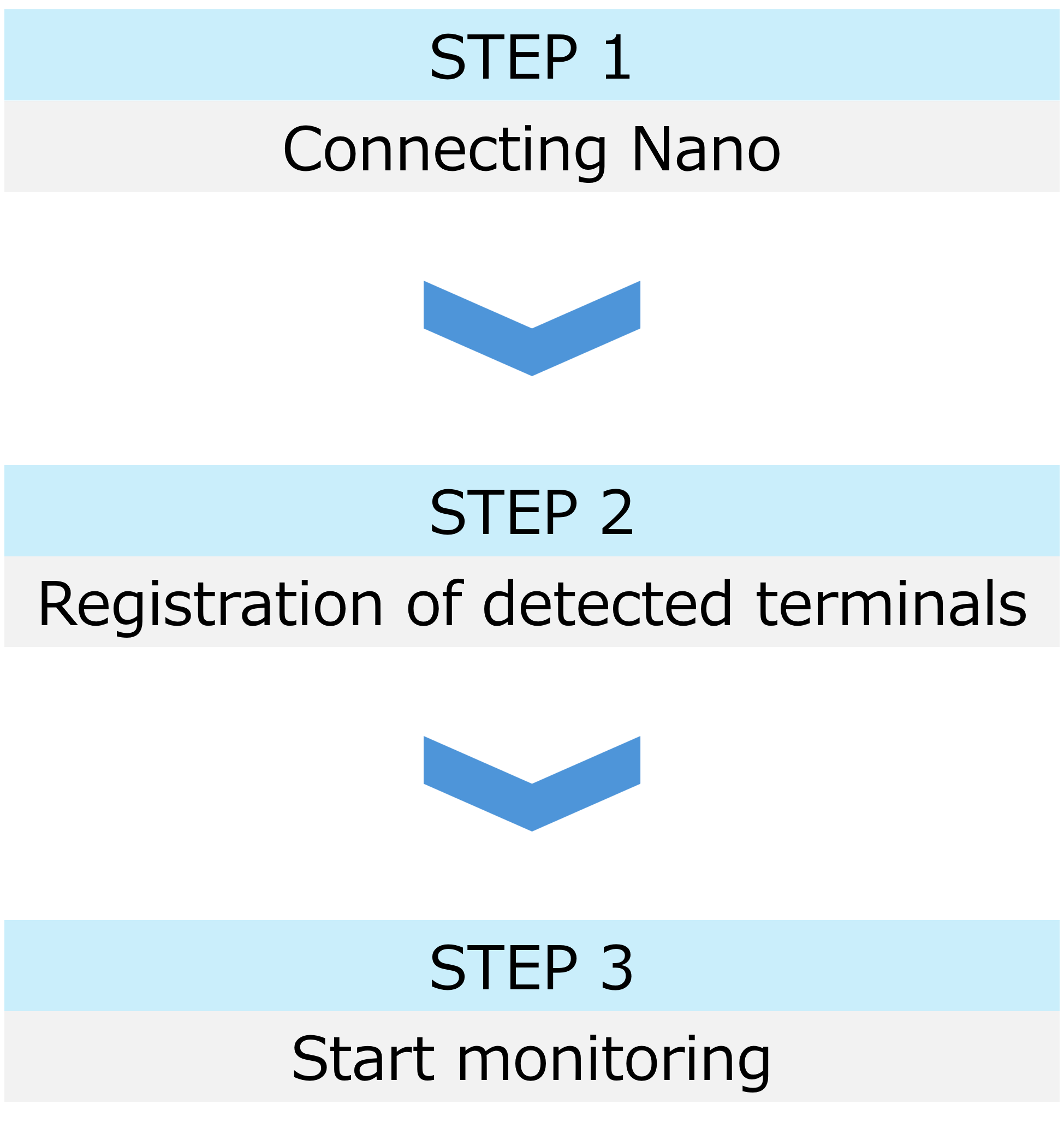

STEP 1: Connecting Nano
Connect NetSkateKoban Nano to the LAN port of the switch or hub. After connection, NetSakteKoban Nano automatically starts collecting terminal information (terminal detection); accessing NetSkateKoban Nano's web UI with a browser allows you to see a list of detected terminals.
STEP 2: Registration of detected terminals (Creation of Allowed Terminal List (ATL))
Select the terminals that are allowed to connect to the network from the list of detected terminals and register them in the ATL (list of terminals allowed to connect). If there is already ATL file (NetSkateKoban Nano ATL format), it can also be uploaded to NetSkateKoban Nano. In the ATL settings, you can also allow connections for an arbitrary period of time on a terminal-by-terminal basis.
STEP 3: Start monitoring
Start monitoring for unauthorised terminal connections. Terminals not registered in ATL are considered as unauthorised terminals.
Quick Start Guide included!
It requires no specialist knowledge and can be set up as easily as a household appliance.
Nano Manager

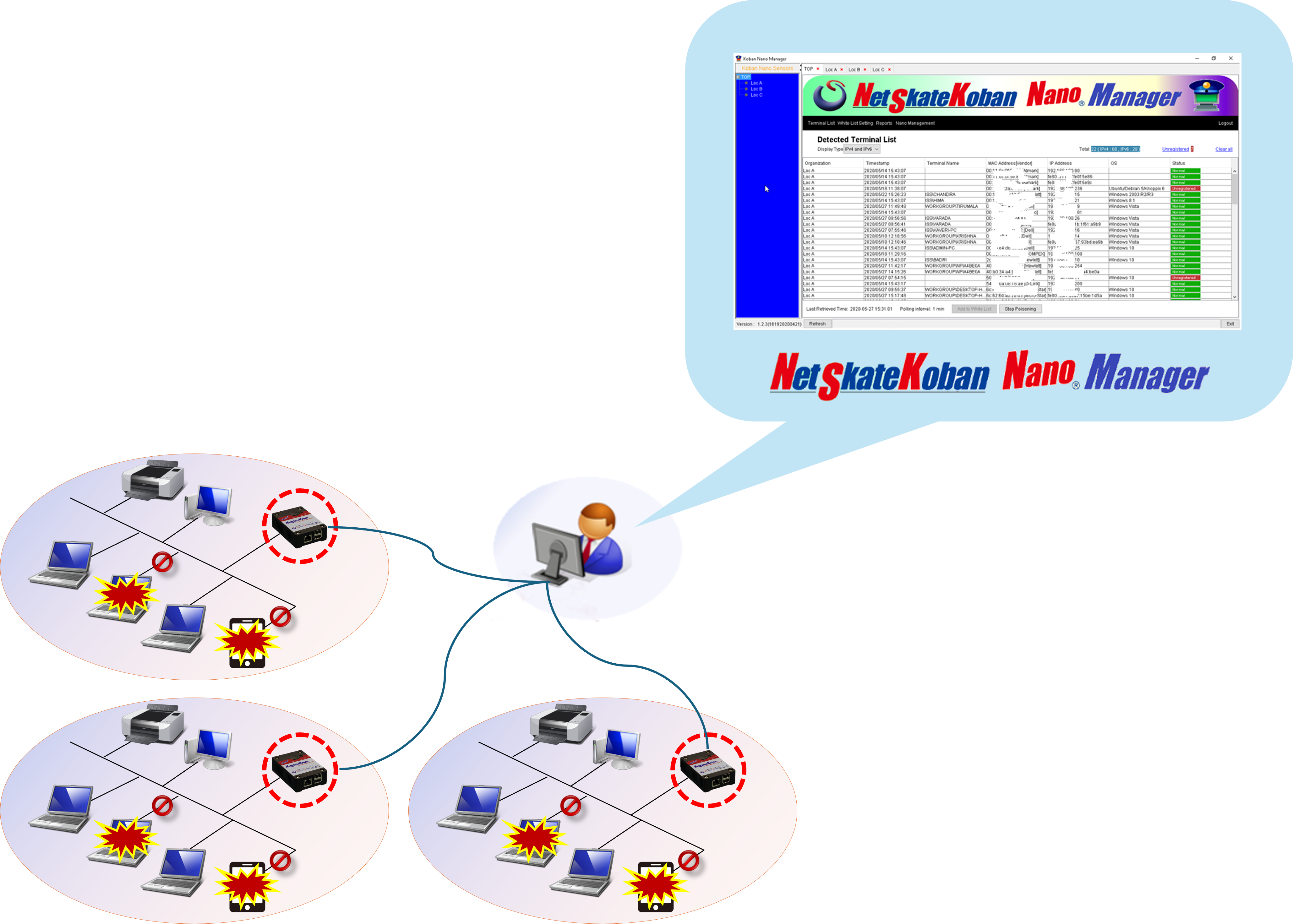

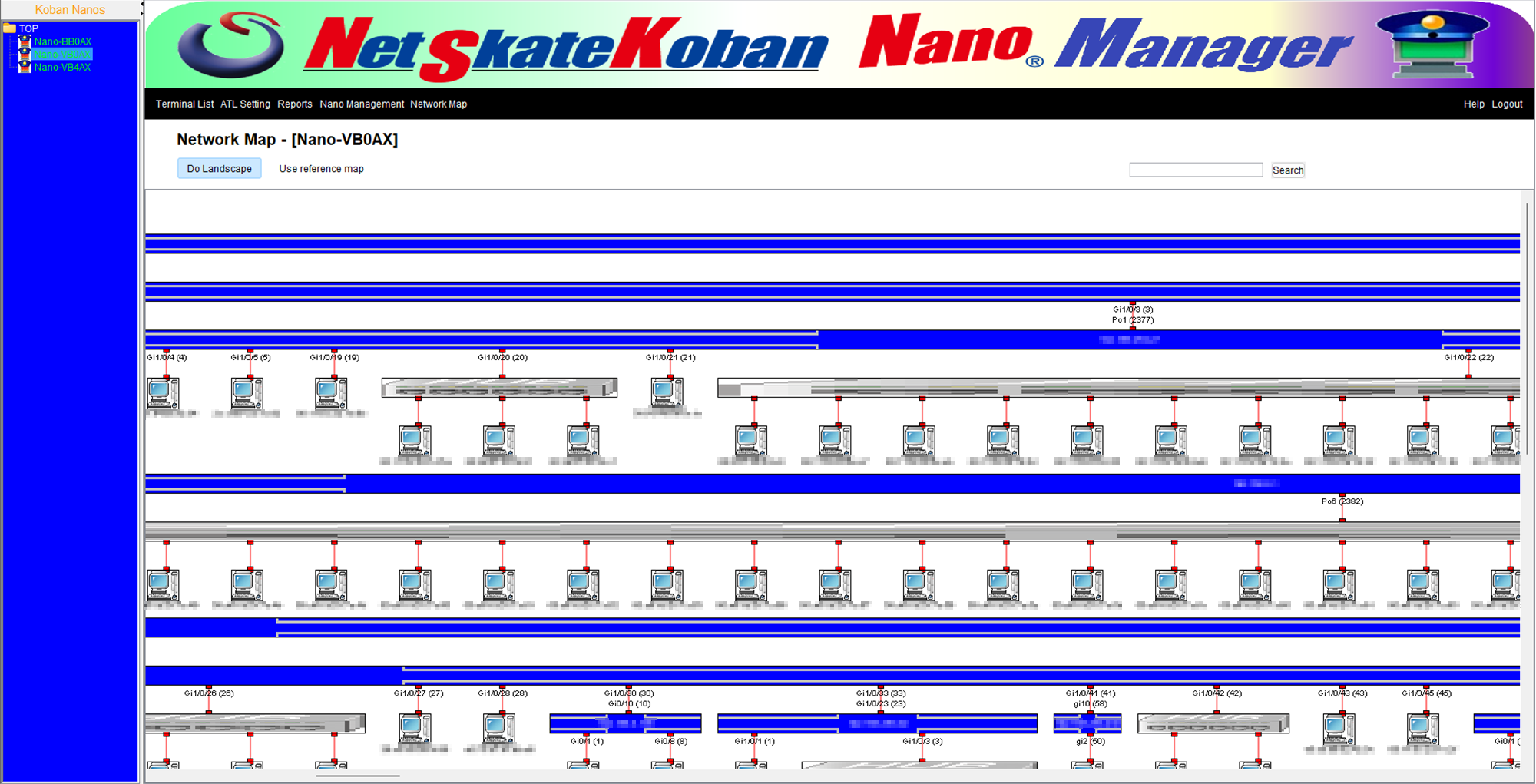

Multiple Nanos installed at multiple locations can be centrally managed with Nano Manager
Nano Manager is a tool (free option) that allows centralised management of multiple NetSkateKoban Nano sensors.

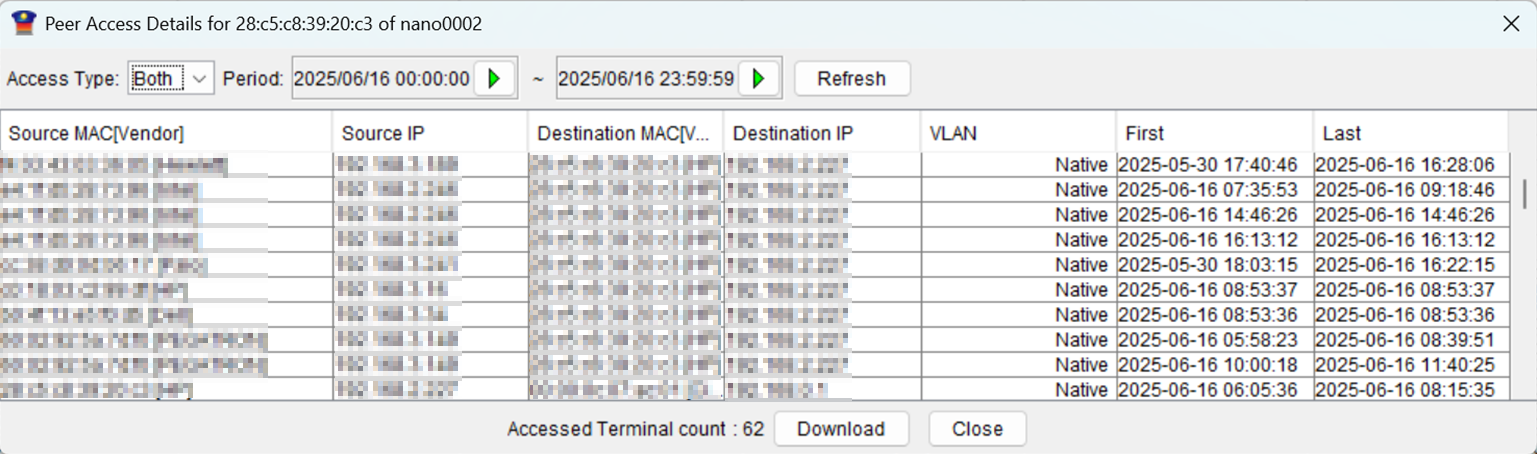

Nano Manager can check the status of terminal connections and upload/download terminal information on NetSkateKoban Nano, which is monitored at each site.
With Nano Manager, it is also easy to manage the terminals present at all locations in the country.
Note: It is possible to operate NetSkateKoban Nano without Nano Manager, as NetSkateKoban Nano operates autonomously.
Functions

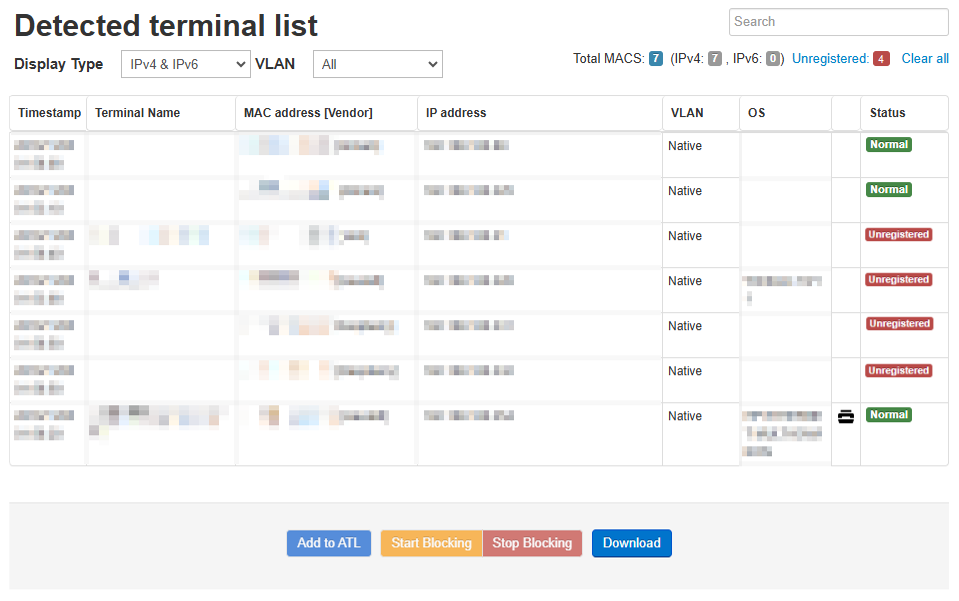

Terminals Detection/Display
- Display a list of connected terminals
- Display a list of blocked terminals
- Auto Active Detection (Detect terminals that do not actively communicate over the network, such as Wi-Fi routers, Ethernet switches, printers, and IoT terminals.)

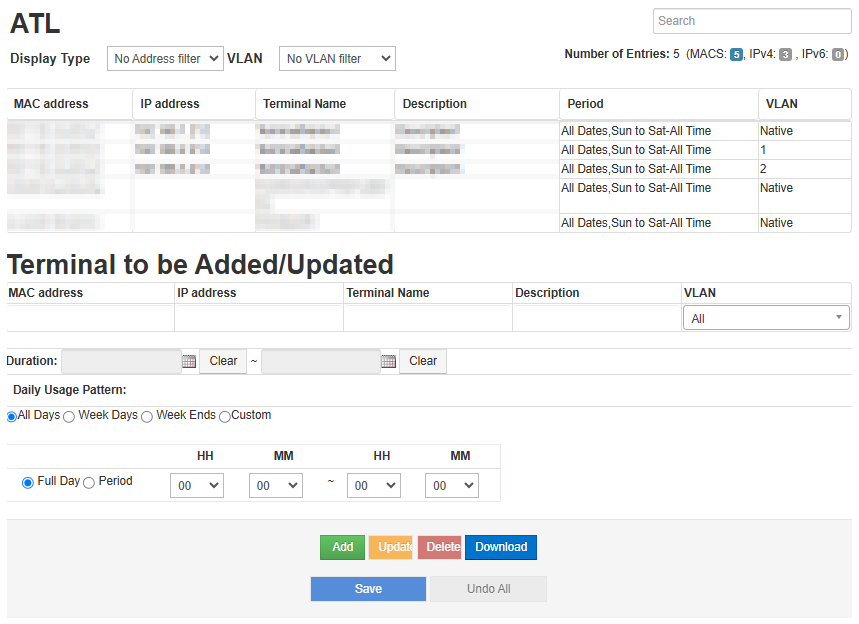

Allowed Terminal List (ATL) Management
- Manual registration of Allowed Terminal List (you can also register from Detected Terminal List)
- Allowed Terminal List (ATL) file upload/download
- Setting the period (date, day of the week, time) during which terminal connections are allowed
Action settings when unregistered terminal is detected
- Multilateral Communication Interference
- Email notification
- Auto Registration to Allowed Terminal List (ATL)
- Quick URL
Report Output
- Weekly report of Terminal Usage Pattern
SNMP Traps and Syslogs sent from anti-virus products and UTM (Unified Threat Management)s can be used to acquire terminal information, identify terminals and link to functions such as blocking and email notification. This function can be used to deter the spread of computer viruses and other infections and provide a multi-layer defence.
Specification
Functional Specifications
| Terminal detection | ARP detection |
| Terminal management | Allowed Terminal List (ATL) registration system (all day permission/time zone specified permission) |
| Blocking method | Multilateral communication interference (patented technology) |
| Notification | Send alert email |
| Monitoring interface | Web UI operation (list display, CSV output) |
| Setting interface | Web UI operation, CSV import supported (same for manager for unified management of multiple terminals) |
Hardware Specifications
| External dimensions | Approximately 24.3(H) x 83(W) x 58(D) mm (excluding protrusions) |
| Weight | 80 [g] (main body), 105 [g] (AC adapter) |
| LAN interface | 10BASE-T / 100BASE-TX (AUTO-MDIX compatible) x 1 port |
| Operating temperature range | -20 ~ 70℃ |
| Power supply | 100 – 240V (AC adapter included) |
| Power consumption | Typ. 1.2W |
